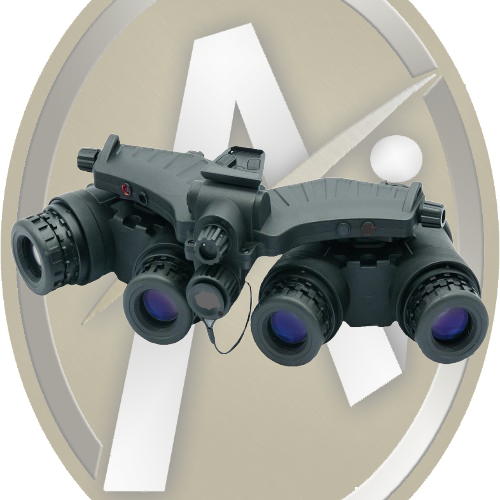

PANOS – Quad Panoramic Night Vision Goggles with Elbit SLH Green Phosphor Tubes

Wide-Angle Awareness. Built Without Compromise.

Welcome to 97 degrees of night vision. The PANOS Quad Goggle is a panoramic night vision system designed for users who demand maximum field of view without sacrificing reliability, modularity, or optical performance. This configuration features four independently collimated Elbit SLH Gated Green Phosphor Gen 3 tubes — delivering a wider field of view than standard binocular NVGs, while maintaining the clarity and low-light precision Elbit is known for.

This is not a concept. This is a functioning quad-tube system built with U.S.-made components, assembled in the United States, and optimized for end users who need the best spatial awareness possible under low-light or no-light conditions. Whether you're working in law enforcement, maritime security, or critical infrastructure defense, PANOS gives you more vision with fewer compromises.

About the Elbit SLH Green Phosphor Tubes

Each system includes four gated Gen 3 Elbit SLH tubes. These are green phosphor, U.S.-made image intensifiers that meet or exceed the following minimums:

• Center Resolution: 64 lp/mm (typically higher)
• Signal-to-Noise Ratio (SNR): 24 minimum
• Gain: 40,000 – 80,000
• Halo: ≤ 1.25 (typical ~0.7)
• Photocathode Response: 1800 minimum

The green phosphor variant provides a classic, high-contrast night vision image ideal for long-duration operations. SLH tubes are selected for their consistency and service-ready performance — these are the same image intensifiers trusted by professional users worldwide.

Key Features:

• Four-Tube Panoramic Design: Expands field of view from ~40° to 97° with four overlapping optical channels
• Elbit SLH Tubes: Gen 3, gated, green phosphor, minimum 64 lp/mm resolution
• Modular Power Options: Powered by onboard CR123A or external battery pack via Fischer port
• Individual Pod Shutoff: Outer pods shut off when rotated — protects tube life and lets you customize your FOV
• Manual Gain Control: Fine-tune brightness in variable lighting
• Mount Compatibility: Standard dovetail interface – fits Wilcox G24 and similar
• Housing Weight: Comparable to dual tube plus bridge setups; weight-saving design avoids overbuild

What’s Included:

• Fully assembled PANOS quad goggle with 4x Elbit SLH green phosphor tubes
• Mil-spec PVS-14 style optics (objective and eyepiece)
• AA battery or CR123A battery option (based on model)
• Lens covers
• Foam-lined protective case

More Vision. More Control. Same Footprint.

If you’re coming from a dual-tube setup, you’ll notice the difference the first time you scan a room or drive a trail. That extra field of view reduces head movement, boosts situational awareness, and makes complex environments feel less claustrophobic. With military-grade components, U.S. tubes, and proven support, this is a quad that earns its keep.
