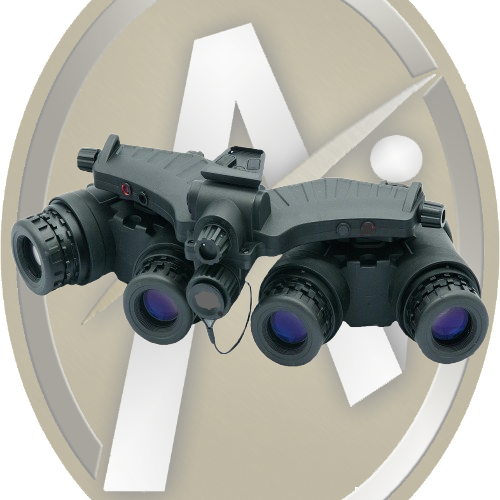

PANOS QUAD Night Vision Panoramic Goggle Housing

The Four Tube Goggle You've Always Wanted But Couldn't Afford

The PANOS housing system enables an unprecedented 97° field of view through a quad-tube night vision layout. Designed for maximum tactical awareness, it's the operator’s choice for panoramic NVG dominance.

Until now the feasibility of actually owning a set of “panos” has been limited to the realm of special forces personnel, the rich, and those who spend an alarming percent of their money on having the latest technology. Well, we have not exactly been able to bring the price of panoramic night vision (or quad night vision) down to where everybody can afford them, but we have taken a lot of the sting out of that proposition. The answer we have right now, today, is the PANOS QUAD, and if you have been looking for an extreme WFOV goggle answer, then you will be quite pleased with what you find here.

Key Features

• Four image intensifiers combine to give a 120 degree horizontal by 50 degree vertical field of view. This is four times wider than most night vision goggles.
• The PANOS QUAD arrives factory configured for your choice of four MX10160 or MX11769 image intensifier tubes. The MX11769 option allows for a single gain (brightness) controller for all four tubes.
• The provided dovetail mount adapter will interface with all popular brands of helmet and head mounts. Aviation mounts are available as a special order.
• IP67 weatherproof construction - rated to withstand submersion in up to one meter of water for at least 30 minutes.

Technical Specifications

• Image Intensifier Options:
  MX10160 Green Phosphor Gen. 2+
  MX10160 White Phosphor Gen. 2+
  MX10160 Green Phosphor Gen. 3
  MX10160 White Phosphor Gen. 3
  MX11769 Green Phosphor Gen. 2+
  MX11769 White Phosphor Gen. 2+
  MX11769 Green Phosphor Gen. 3
  MX11769 White Phosphor Gen. 3
• Resolution: 48-72 lp/mm (depending on image intensifier tube)
• Field of View: 120 degree horizontal by 50 degree vertical.
• Magnification: 1x
• Diopter Adjustment: +1.5 to -2.5
• Auto-Off: Flip-Up-Off
• Bright Light Cut-Off
• Infrared Illuminator: Built-in(850nm 20mW)
• IR-on Indicator: YES
• Low Battery Indicator: YES
• Power Options: CR123Ax1 / CR123Ax4 Battery pack
• Optical distortion: 0.5% Max
• Eye relief: 30mm
• Pupil Diameter: 8mm
• Operating temperature: -40 to +55℃
• Humidity range: 5%-95%
• Waterproof Rating: IP67* - other versions of the same housing used in the PANOS QUAD only rate to IP65. All units from Adams Industries, Inc. are IP67.
• Dimensions: 155x136x83mm
• Weight: 880g complete

Package Includes

• PANOS QUAD Night Vision Goggles
• Protective carrying case
• Lens cleaning kit
• User manual

Pricing and Ordering

Regardless whether it is for your personal unit or equipping a regiment, each PANOS QUAD night vision goggle is an optimized collection of components that are painstakingly assembled to provide you with the best panoramic google available on earth today for the price that we do. You will be walked through the options available for your PANOS QUAD build, and you can choose a setup that fits your needs and budget.

That said, we completely understand how it feels to need to know a price range for your PANOS QUAD. So here are some examples:

1. First off, because we know you will ask, we do not sell housings. You will build it wrong, or your buddy who was a Ranger will, and you’ll go blind and shoot your eye out. No.
2. There is almost zero chance that you have four tubes in your possession that are closely matched enough to make a panoramic goggle that won’t give you mind altering headaches. That said, we may be able to swap around in our inventory with what you have or sell you a missing tube if needed. So mostly for your amusement: If you have a matched set of four MX10160 image intensifiers, then a PANOS QUAD assembled properly, collimated, pressure checked, purged, and with standard accessories, will cost $4,500.00. If those tubes are MX11769 then the price would go to $5,000.00.
3. If you want to purchase a PANOS QUAD night vision goggle with Elbit Green Phosphor SLH MX11769 (gain control) tubes in it, then your price will be $11,375.00. This is actually less than many companies are charging for Gen 2+ panoramic goggles. Maybe we should raise the price…
4. Now for fun, let’s put together the most expensive PANOS QUAD that we can: a unit equipped with L3 white phosphor 24ua image intensifier tubes. This particular PANOS QUAD would set you back… an even $24K, or about half a decent Rolex.

Frequently Asked Questions

What is the field of view of the PANOS housing?

The PANOS quad layout provides an approximate 97° horizontal field of view, far wider than standard binocular night vision goggles.

Is the PANOS compatible with existing image intensifier tubes?

Yes, the PANOS housing is modular and supports standard legacy 18mm intensifier tubes, depending on model and configuration.

Any way you look at it, this is a big night vision purchase. You should call us at (424) 225-1695 or contact us to decide what will be the best system for you and how quickly we can deliver this custom built piece (or pieces) to you.
