MH-1 L3 White Phosphor Filmless Gated 24UM

MH-1 Night Vision Goggles: Advanced Dual Tube Technology with L3 20UA Intensifiers

Precision-Engineered Performance for Professional Users

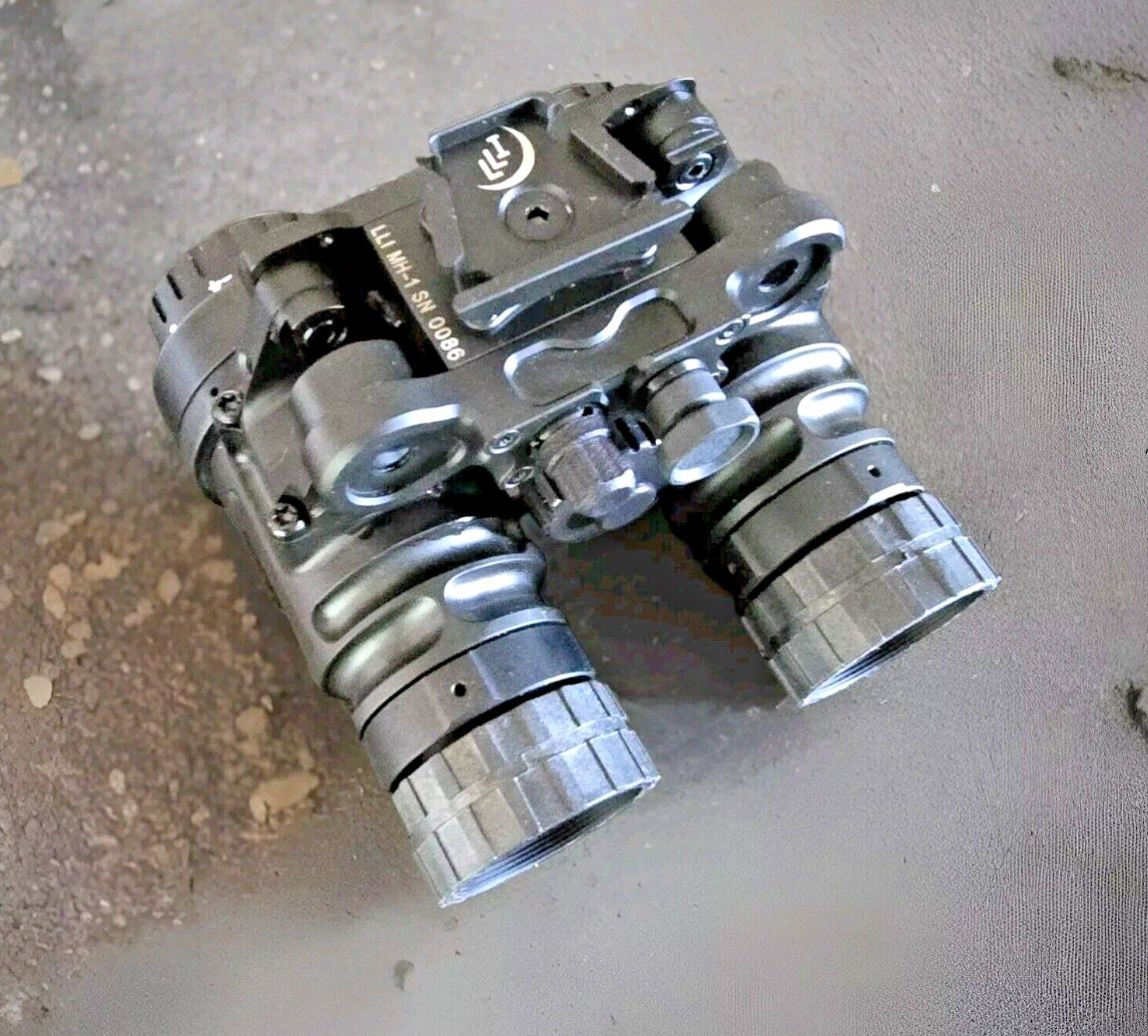

The MH-1 dual tube night vision goggles, built by Adams Industries, Inc., represent the pinnacle of low-light technology. Featuring L3 20UA image intensifier tubes, these goggles deliver unparalleled performance for military, law enforcement, and civilian applications.

Key Features of the MH-1 with L3 20UA Technology:

• Dual Tube Design: Enhanced depth perception and situational awareness
• L3 20UA Image Intensifiers: the best possible performance before prices also kick into "high performance."
• Manual Gain Control: Precise adjustment for optimal image clarity in varying light conditions

• Flip-Up-Off Capability: Seamless transition between night vision and unaided sight
• Lightweight Construction: Aerospace-grade magnesium and titanium, weighing only 15.3 ounces
• Modular Power System: Compatible with CR123A and AA batteries
• Modular Bridge System (MBS): Converts from binocular to dual monocular configuration

L3 20UA Technology: The Heart of MH-1 Performance

The integration of L3 20UA image intensifier tubes in the MH-1 goggles ensures:

• Superior low-light performance
• High-resolution imagery
• Exceptional signal-to-noise ratio
• Reduced halo effect

Why Choose the MH-1 with L3 20UA Intensifiers?

1. Unmatched Optical Quality: Paired exclusively with Carson optics for crystal-clear imagery
2. Customization: Modular design adapts to diverse mission requirements
3. Durability: Titanium hardware upgrade for corrosion resistance and longevity
4. Professional-Grade Manufacturing:

• Clean room assembly
• Precision pod assembly using ANVIS torque wrenches
• 20-minute vacuum testing at 20 inHg
• Nitrogen purging for optimal performance
• Professional collimation

MH-1 Specifications:

• Weight: 15.3 ounces
• Battery Compatibility: CR123A and AA
• Warranty: 5-year system warranty
• Color Options: Black, FDE, Ranger Green, Gray

What's Included

• MH-1 Dual Tube Night Vision Goggle with L3 20UA intensifiers
• Battery set
• User manual
• Protective hard case

Availability and Ordering

Due to high demand for the MH-1 with L3 20UA technology, please call (424) 225-1695 for current lead times and availability.

Invest in the MH-1 night vision goggles with L3 20UA intensifiers today and experience unparalleled low-light performance. Whether you're a professional operator or a dedicated enthusiast, the MH-1 is engineered to exceed expectations in the most challenging environments.

L3 White Phosphor Gated Filmless 20UA Tube Specs:

• Figure of Merit (FOM): 1792 minimum
• Resolution: 64/lp/mm minimum
• Signal to Noise Ratio (SNR): 28 minimum
• HALO: 1.0 maximum

FEATURES

• Rotational pod shutoff
• Manual gain control (4-pin plug-in)
• Dual power IR illumination
• IPD stops
• Modular pod design (convertible to monoculars)
• Onboard and external power options (modular)
• Versatile mounting platforms (Dovetail/Ball detent)
• Adjustable pod tension

TECHNICAL SPECIFICATIONS

• Magnification: 1x (unity)
• Focus Range: 9.8" to infinity
• Field of View: 40 degrees
• Interpupillary Adjustment: 51 to 78mm
• Diopter Adjustment: -6 to +2
• Eye Relief: 25mm
• Power Source: Modular
• Operational Time: Approximately 25-90 hours
• Weight: 434g
• Water Resistance: Submersible to 66 ft for 2 hours with appropriate optics and build.
• Compatibility: MX-10160/11769 intensifier tubes, PVS-14 eyepieces and objectives
