MH-1 L3 White Phosphor Filmless Gated 20UM

MH-1 L3 White Phosphor Filmless Gated 20UM

SKU AI-353081
$0.00
1
Save this product for later
MH-1 L3 White Phosphor Filmless Gated 20UM
Product Details
Brand: Adams Industries, Inc.

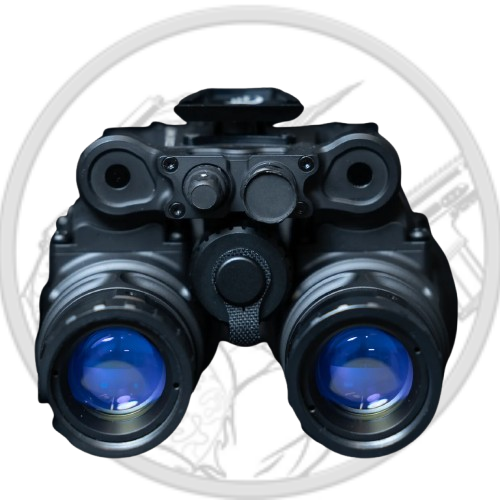

MH-1 Night Vision Goggles: Advanced Dual Tube Technology with L3 20UA Intensifiers

Due to the volatility of the tube market, we ask that you send us a Request for Quote on this item. We will get back to you with current availability and price. Thank you in advance. You can start the process by hitting this button:

Request a Quote

Precision-Engineered Performance for Professional Users

The MH-1 dual tube night vision goggles, built by Adams Industries, Inc., represent the pinnacle of low-light technology. Featuring L3 20UA image intensifier tubes, these goggles deliver unparalleled performance for military, law enforcement, and civilian applications.

Key Features of the MH-1 with L3 20UA Technology:

  • Dual Tube Design: Enhanced depth perception and situational awareness
  • L3 20UA Image Intensifiers: the best possible performance before prices also kick into "high performance."
  • Manual Gain Control: Precise adjustment for optimal image clarity in varying light conditions
  • Flip-Up-Off Capability: Seamless transition between night vision and unaided sight
  • Lightweight Construction: Aerospace-grade magnesium and titanium, weighing only 15.3 ounces
  • Modular Power System: Compatible with CR123A and AA batteries
  • Modular Bridge System (MBS): Converts from binocular to dual monocular configuration

L3 20UA Technology: The Heart of MH-1 Performance

The integration of L3 20UA image intensifier tubes in the MH-1 goggles ensures:

  • Superior low-light performance
  • High-resolution imagery
  • Exceptional signal-to-noise ratio
  • Reduced halo effect

Why Choose the MH-1 with L3 20UA Intensifiers?

1. Unmatched Optical Quality: Paired exclusively with Carson optics for crystal-clear imagery
2. Customization: Modular design adapts to diverse mission requirements
3. Durability: Titanium hardware upgrade for corrosion resistance and longevity
4. Professional-Grade Manufacturing:

  • Clean room assembly
  • Precision pod assembly using ANVIS torque wrenches
  • 20-minute vacuum testing at 20 inHg
  • Nitrogen purging for optimal performance
  • Professional collimation

MH-1 Specifications:

  • Weight: 15.3 ounces
  • Battery Compatibility: CR123A and AA
  • Warranty: 5-year system warranty
  • Color Options: Black, FDE, Ranger Green, Gray

What's Included

  • MH-1 Dual Tube Night Vision Goggle with L3 20UA intensifiers
  • Battery set
  • User manual
  • Protective hard case

Availability and Ordering

Due to high demand for the MH-1 with L3 20UA technology, please call (424) 225-1695 for current lead times and availability.

Invest in the MH-1 night vision goggles with L3 20UA intensifiers today and experience unparalleled low-light performance. Whether you're a professional operator or a dedicated enthusiast, the MH-1 is engineered to exceed expectations in the most challenging environments.

L3 White Phosphor Gated Filmless 20UA Tube Specs:

  • Figure of Merit (FOM): 1792 minimum
  • Resolution: 64/lp/mm minimum
  • Signal to Noise Ratio (SNR): 28 minimum
  • HALO: 1.0 maximum


FEATURES

  • Rotational pod shutoff
  • Manual gain control (4-pin plug-in)
  • Dual power IR illumination
  • IPD stops
  • Modular pod design (convertible to monoculars)
  • Onboard and external power options (modular)
  • Versatile mounting platforms (Dovetail/Ball detent)
  • Adjustable pod tension

TECHNICAL SPECIFICATIONS

  • Magnification: 1x (unity)
  • Focus Range: 9.8" to infinity
  • Field of View: 40 degrees
  • Interpupillary Adjustment: 51 to 78mm
  • Diopter Adjustment: -6 to +2
  • Eye Relief: 25mm
  • Power Source: Modular
  • Operational Time: Approximately 25-90 hours
  • Weight: 434g
  • Water Resistance: Submersible to 66 ft for 2 hours with appropriate optics and build.
  • Compatibility: MX-10160/11769 intensifier tubes, PVS-14 eyepieces and objectives
